Steel grade

Last revised: Thu, 05 Nov 2020 10:52:40 GMT

General Information

20MnCr5 is a case-hardening steel with low carbon content but good hardenability reaching good wear resistance due to high surface hardness after hardening. The small grain size benefits in good ductility and fatigue strength. Suitable for gearboxes and axle gears.

Ovako 236F is a standard variant with controlled sulphur content for consistent machining properties.

Ovako 236Q is an IQ (isotropic quality) variant.

IQ-Steel®
(Isotropic Quality) is an isotropic quality ultra clean steel. IQ-Steel is optimized for fatigue strength by a strict control of steel cleanliness. IQ-Steel, a further development of BQ-Steel, is an isotropic and ultra clean steel with properties that match re-melted steels.

For additional Heat Treatment Data, please visit the Heat Treatment Guide.

IQ-Steel®

IQ-Steel® is an isotropic quality ultra clean steel optimized for high fatigue strength under multi axial loading.

Similar designations

20MnCrS5, 1.7147, 20MnCr4, 1.7149

The hardenability is estimated from cast analysis. The hardenability can be verified with the end quench test if agreed on enquire and order.Jominy hardenability of Ovako 236F:  Measured average value with +/-standard deviation.

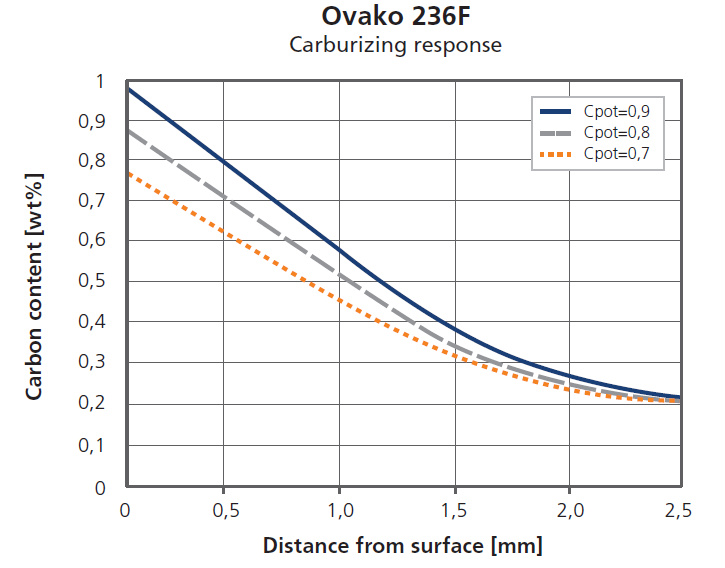

Carburizing response

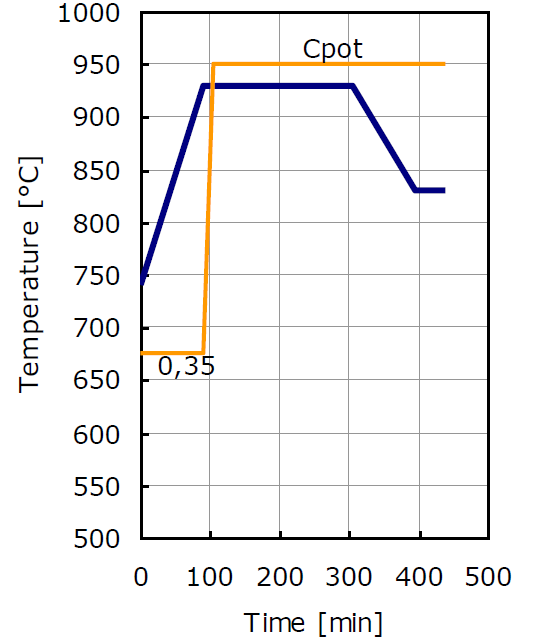

Heat treatment

Steel cleanliness

Micro inclusions - steel grade 236F   Macro inclusions - 236F
Applied standard ASTM E45 Applied standard

ISO 3763

(Blue fracture)
Sampling ASTM A295 Sampling Statistical testing on billets.

Maximum

average limits

 A B C D Limits < 2,5 mm/dm2
Th He Th He Th He Th He
2.5 1.5 1.5 0.5 0 0 0.5 0.5

Micro inclusions - steel grade 236Q   Macro inclusions - 236Q
Applied standard DIN 50602  K1 Applied standard

ISO 3763

(Blue fracture)

10 M Hz UST

(Ovako internal procedure)
Sampling Six random samples from final product dimension Sampling Statistical testing on billets
Limits

The limit is dimension dependent. The average rating of six samples should not exceed the

limits given in the graph.

 Limits < 1 mm/dm2

< 10 defects/dm3

> 0,2 mm FBH

IQ

Other properties (typical values)

Youngs module (GPa)Poisson´s ratio (-)Shear module (GPa)Density (kg/m3)
210 0.3 80 7800
 Average CTE 20-300°C (µm/m°K) Specific heat capacity 50/100°C (J/kg°K) Thermal conductivity Ambient temperature (W/m°K) Electrical resistivityAmbient temperature (µΩm)
 12  460 - 480  40 - 45  0.20 - 0.25
