General Information

C55 is a carbon steel for general purposes found in three variants in EN10083-2. SB C55 meets all three of them. A tight chemical composition ensures repeatable properties

Ovako 510A is an ingot casted steel. High hardness (approx. 60HRC) and high strength can be achieved after hardening due to the relatively high carbon content. The steel is suitable for various type of applications where high strength is needed

Ovako 056K is a low alloyed steel for quench and tempering. Used for machine parts etc. Can be induction or flame hardened

SBC55 is a continuous casted variant

For additional Heat Treatment Data, please visit the Heat Treatment Guide.

Similar designations

C54, C55E - 1.1203, C55R - 1.1209, 070M55 (BS970), ASTM/SAE 1055, SS 1655, C55R, Cf53, 1.1213

Chemical composition

Variant	Cast	Weldability		C %	Si %	Mn %	P %	S %	Cr %	Ni %	Mo %	V %
510A	IC	CEV 0.86_max	Min	0.48	0.15	0.60	-	-	-	-	-	-
510A	IC	Pcm 0.66_max	Max	0.55	0.35	0.80	0.035	0.025	0.30	0.30	0.10	0.100
056K	IC	CEV 0.77_max	Min	0.52	0.20	0.50	-	0.015	0.15	-	-	-
056K	IC	Pcm 0.64_max	Max	0.56	0.30	0.60	0.025	0.025	0.25	0.25	0.06	-
SBC55	CC	CEV 0.71_max	Min	0.52	0.15	0.60	-	0.020	-	-	-	-
SBC55	CC	Pcm 0.6_max	Max	0.57	0.40	0.80	0.030	0.035	0.40	0.40	0.10	-
C55 EN 10083-2:2006 (ref)	Std	CEV 0.83_max	Min	0.52	-	0.60	-	-	-	-	-	-
C55 EN 10083-2:2006 (ref)	Std	Pcm 0.65_max	Max	0.60	0.40	0.90	0.045	0.045	0.40	0.40	0.10	-
C55E EN10083-2:2006 (ref)	Std	CEV 0.83_max	Min	0.52	-	0.60	-	-	-	-	-	-
C55E EN10083-2:2006 (ref)	Std	Pcm 0.65_max	Max	0.60	0.40	0.90	0.030	0.035	0.40	0.40	0.10	-
C55R EN 10083-2:2006 (ref)	Std	CEV 0.83_max	Min	0.52	-	0.60	-	0.020	-	-	-	-
C55R EN 10083-2:2006 (ref)	Std	Pcm 0.65_max	Max	0.60	0.40	0.90	0.030	0.040	0.40	0.40	0.10	-

Cr+Ni+Mo ≤ 0.63

Mechanical Properties

Variant	Condition	Format	Dimension [mm]	Yield strength min [MPa]	Tensile strength [MPa]	Elongation A₅ [%]	Reduction of area Z_min [%]	Hardness
Rp_0.2 * R_eh, ** R_el
510A	+QT	Round bar	25 < 40	420	700-850	15	40	-
056K	+QT	Round bar	15 < 40	520	800-950	13	30	-
SBC55	+AR	Round bar	16 < 25	-	-	-	-	220-257 HB
		Round bar	16 < 25	-	-	-	-	241 HB typical
		Round bar	26 < 85	-	-	-	-	220-250 HB
		Round bar	26 < 85	-	-	-	-	237 HB typical
		Flat bar	5 < 15	-	-	-	-	225-285 HB
		Flat bar	5 < 15	-	-	-	-	252 HB typical
		Flat bar	16 < 60	-	-	-	-	225-265 HB
		Flat bar	16 < 60	-	-	-	-	248 HB typical
C55 EN 10083-2:2006 (ref)	+QT	Round bar	< 16	550**	800-950	12	30	-
		Round bar	16.1 < 40	490**	750-900	14	35	-
		Round bar	40.1 < 100	420**	700-850	15	40	-
		Flat bar	< 8	550**	800-950	12	30	-
		Flat bar	8.1 < 20	490**	750-900	14	35	-
C55E EN10083-2:2006 (ref)	+S	All formats	-	-	-	-	-	< 255 HB
C55E EN10083-2:2006 (ref)	+A	All formats	-	-	-	-	-	< 229 HB
C55R EN 10083-2:2006 (ref)	+QT	Flat bar	< 8	550**	800-950	12	30	-
		Flat bar	8.1 < 20	490**	750-900	14	35	-
		Flat bar	20.1 < 60	420**	700-850	15	40	-

Transformation temperatures

	Temperature °C
MS	270
AC1	720
AC3	750

Heat treatment recommendations

Treatment	Condition	Temperature cycle	Cooling/quenching
Hot forging	+AR	850-1100°C	In air
Normalizing	+N	790-820°C	In still air
Soft annealing	+SA	680-710°C 2-4h, 15°C/h to 600°C	In still air
Hardening	+QT	790-820°C	In oil, temper immediately

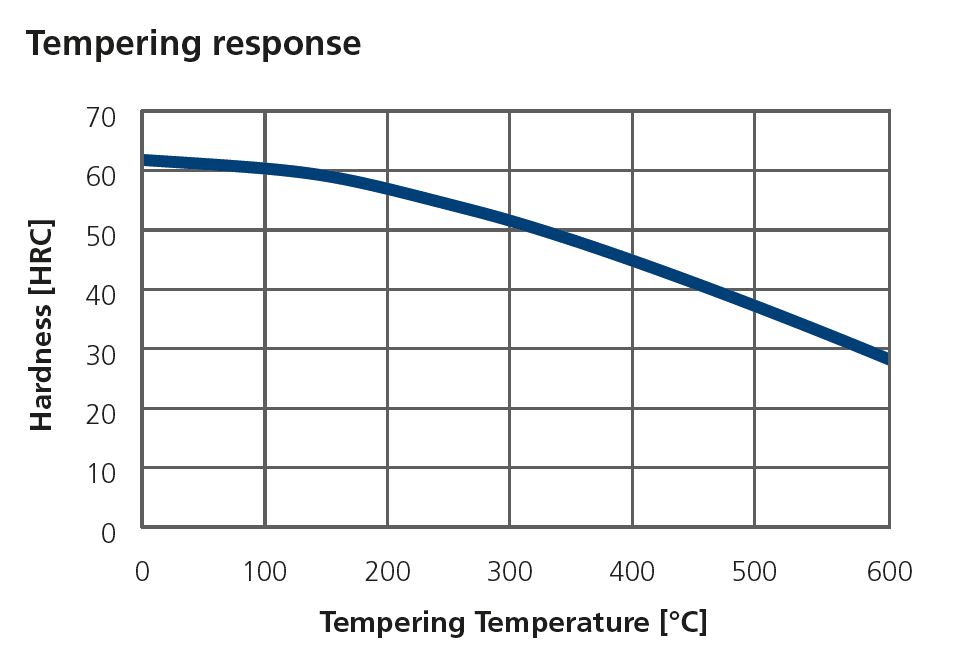

Tempering	+QT	150-650°C 1h see tempering diagram	In still air

Data valid for Ovako 510A.

Heat Treatment Guide generated Graphs

The following graphs are generated from a theoretical model. For further info see the Heat treatment guide module. Select a specific grade version for individual display.

Hardenability

510A

Steel cleanliness

Micro inclusions - 510A									Macro inclusions - 510A
Applied standard	ASTM E45								Applied standard	ISO 3763 (Blue fracture)
Sampling	ASTM A295								Sampling	Statistical testing on billets
Maximum average limits	A		B		C		D		Limits	< 5 mm/dm²
	Th	He	Th	He	Th	He	Th	He
	2.5	1.5	1.5	0.5	0	0	1.0	0.5

Other properties (typical values)

Youngs module (GPa)	Poisson´s ratio (-)	Shear module (GPa)	Density (kg/m3)
210	0.3	80	7800
Average CTE 20-300°C (µm/m°K)	Specific heat capacity 50/100°C (J/kg°K)	Thermal conductivity Ambient temperature (W/m°K)	Electrical resistivityAmbient temperature (µΩm)
12	460 - 480	40 - 45	0.20 - 0.25

Contact us

Would you like to know more about our offers? Don´t hesitate to contact us:

Via e-mail: info@ovako.com

Via telephone: +46 8 622 1300

For more detailed information please visit http://www.ovako.com/en/Contact-Ovako/

Disclaimer

The information in this document is for illustrative purposes only. The data and examples are only general recommendations and not a warranty or a guarantee. The suitability of a product for a specific application can be confirmed only by Ovako once given the actual conditions.The purchaser of an Ovako product has the responsibility to ascertain and control the applicability of the products before using them. Continuous development may necessitate changes in technical data without notice. This document is only valid for Ovako material. Other material, covering the same international specifications, does not necessarily comply with the properties presented in this document.
